CNC Lathe
CKE-M Series
This machine tool is a CNC horizontal lathe with two-axis control: vertical (Z) and horizontal (X). It is capable of automatically performing cutting processes such as internal and external cylindrical surfaces, conical surfaces, circular arc surfaces, end faces, grooving, and chamfering for large shaft-like and disc-like parts. It can also perform various turning processes, including metric straight threads, end face threads, imperial straight threads, and tapered threads. The CKA61100M and CKA61125M models utilize CNC systems from well-known domestic and international companies such as FANUC and Siemens, enabling multiple repetitive machining cycles for workpieces. It is suitable for the production of a variety of products in large quantities and excels particularly in the machining of complex and high-precision parts.
Product overview
1.The machine tool adopts a traditional horizontal lathe layout. The overall design features good sealing and complies with safety standards. Major foundation components such as the bed, headstock, saddle, and tailstock are all manufactured using resin sand casting, contributing to the machine's superior stability.
2.For parts related to precision, such as the bed, saddle, lead screws, and supports, the structure and machining accuracy have been carefully optimized. Additional assembly control measures have been incorporated to enhance the machining precision of the machine tool, ensuring consistent, stable, and reliable processing of workpieces.
3.The machine tool's CNC system is sourced from internationally renowned manufacturers, ensuring high reliability of the machine.
4.The machine tool employs a design that integrates mechanical and electrical components, resulting in a compact and rational overall layout. It offers user-friendly operation and ease of maintenance.
5.The machine tool features a modular design, allowing for different configurations based on user requirements (such as system configurations). This design flexibility caters to various needs for machining different types of parts.
Product details
| Specification | Unit | CKA61100M | CKA61125M |
| Max.swing diameter over bed | mm | Φ1000 | Φ1250 |
| Max. swing diameter over cross slide | mm | Φ630 | Φ1250 |
| Max. workpiece length | mm | 1500、2000、3000、 4000、 5000、 6000 | |
| Max. cutting length | mm | 1400、1900、2900、3900、 4900、5900 | |
| Max. turning diameter | mm | Φ1000 | Φ1250 |
| Spindle center height | mm | 500 | 625 |
| Bed guideway width | mm | 750 | 755 |
| Spindle motor power (Servo motor) | kw | 22/26(FANUC) | |
| Spindle bore | mm | Φ130 | |
| Chuck size | mm | Φ1000 | Φ1250 |
| Taper of spindle bore | Front end Φ140mm 1:20 | ||
| Type of spindle nose | A2-15 | ||
| Spindle speed ranges | r/min | 2~500 (L 2~87、M 5~201、H11~500) |
|
| Spindle speed ranges(with chuck) | r/min | 2~315 | 2~280 |
| Tailstock quill diameter | mm | Φ200 | |
| Tailstock quill travel | mm | 300 | |
| Tailstock quill taper | MT 6 | ||
| Max. travel of X-axis | mm | 520 | 640 |
| Max. travel of Z-axis | mm | 1500、2000、3000、4000、 5000、6000 | |
| Rapid traverse of X/Z axis | m/min | 6/8 | |
| Tool shank size (Vertical 4-positon) | mm | 40X40 | |
| X/Z axis positioning accuracy | mm | 0.021/0.026(1500、2000)、 0.03(3000、 4000、 5000、 6000) | |
| X/Z axis repeatability accuracy | mm | 0.008/0.014 (1500、 2000 、 3000、 4000、5000、 6000) | |
| Machine dimensions(LXWXH) | mm | 6320X2300X2000(1500) 6820X2300X2000(2000) 7820X2300X2000(3000) 8820X2300X2000(4000) 9820X2300X2000(5000) 10820X2300X2000(6000) |
6320X2520 X2250(1500) 6820X2520X2250(2000) 7820X2520X2250(3000) 8820X2520X2250(4000) 9820X2520X2250(5000) 10820X2520X2250(6000) |
| Machine weight | kg | 13.5/14/15/16/17/18 | 14.5/15/16/17/18/19 |

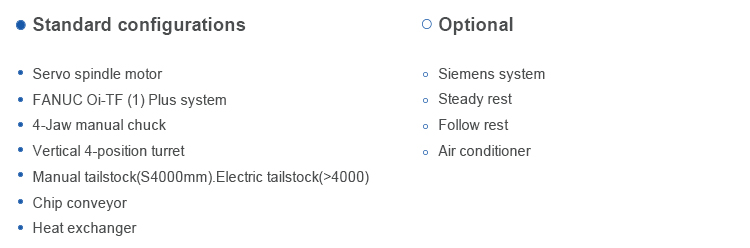

Product configuration
